Components

consists of:

• waverail size 25 - wr25  |  article no. 1101885
• Support profile wr25  |  article no. 1101884
• Retaining profile wr25  |  article no. 1101881
• Clamping profile wr25  |  article no. 11101882
• wr25-Guiding shaft  |  article no. 1101883

consists of:

• waverail size 40 - wr40  |  article no. 1099996
• Support profile wr40  |  article no. 1099995
• Retaining profile wr40  |  article no. 1099992
• Clamping profile wr40  |  article no. 1099993
• wr40-Guiding shaft  |  article no. 1099994

available as:

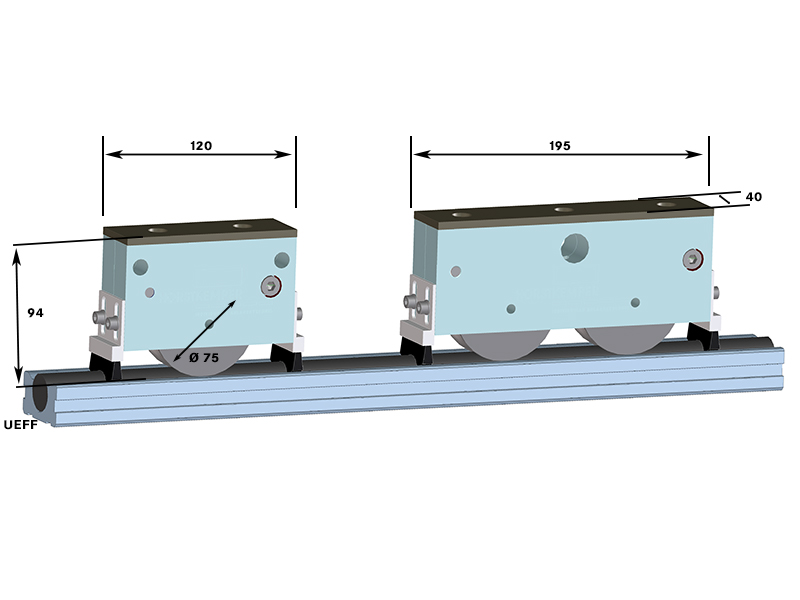

• Single wheel block wr25  |  article no. 1077399
• Double wheel block wr25  |  article no. 1071512

max. loads:

• single: 16,4 kN *
• double: 32,8 kN *

* Reduced wheel flange loads: ca. 40%

available as:

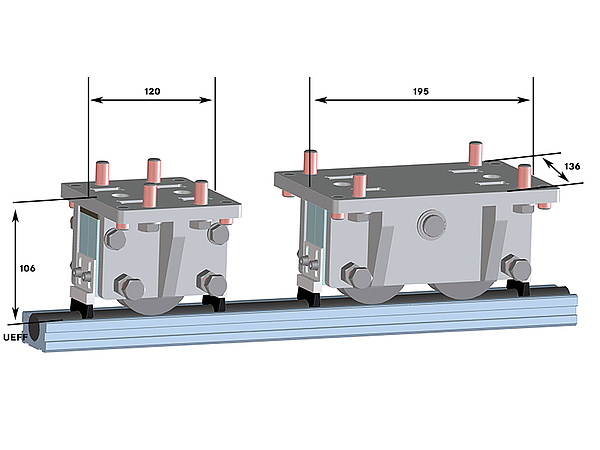

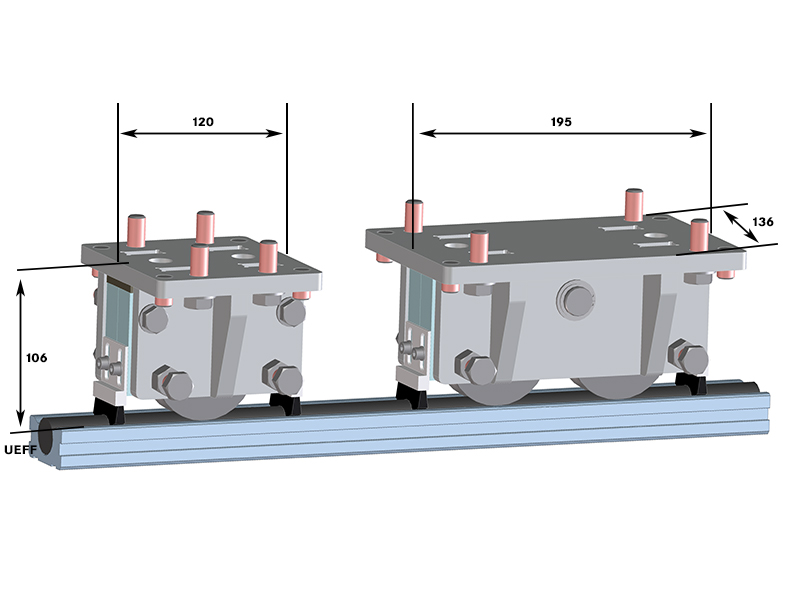

• Single wheel block with mounting frame wr25  |  article no. 1077417
• Double wheel block with mounting frame wr25  |  article no. 1077370

max. loads:

• single: 16,4 kN *
• double: 32,8 kN *

* Reduced wheel flange loads: ca. 40%

available as:

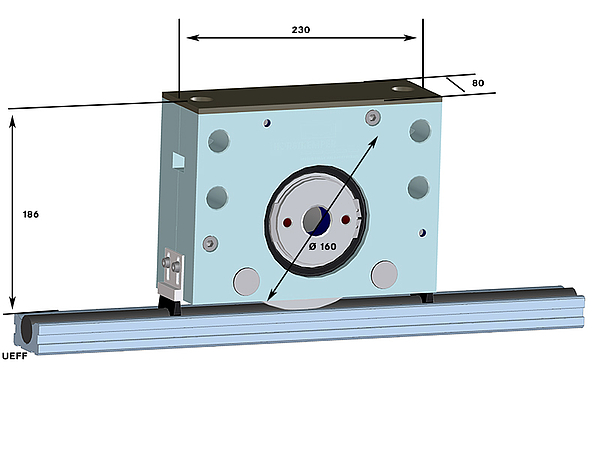

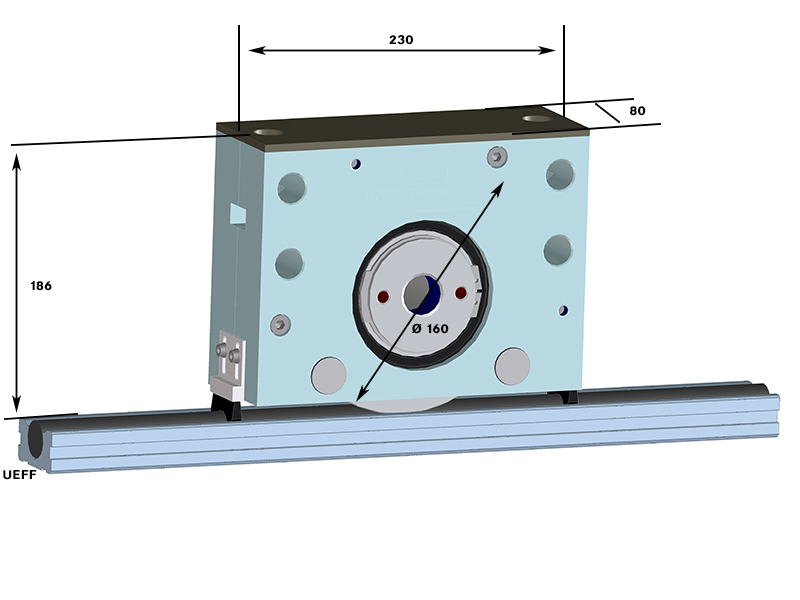

• Single drive block floating bearing wr25  |  article no. 1077449
• Single drive block fixed bearing wr25  |  article no. 1077425

max. loads: 25 kN *

* Reduced wheel flange loads: ca. 40%

available as:

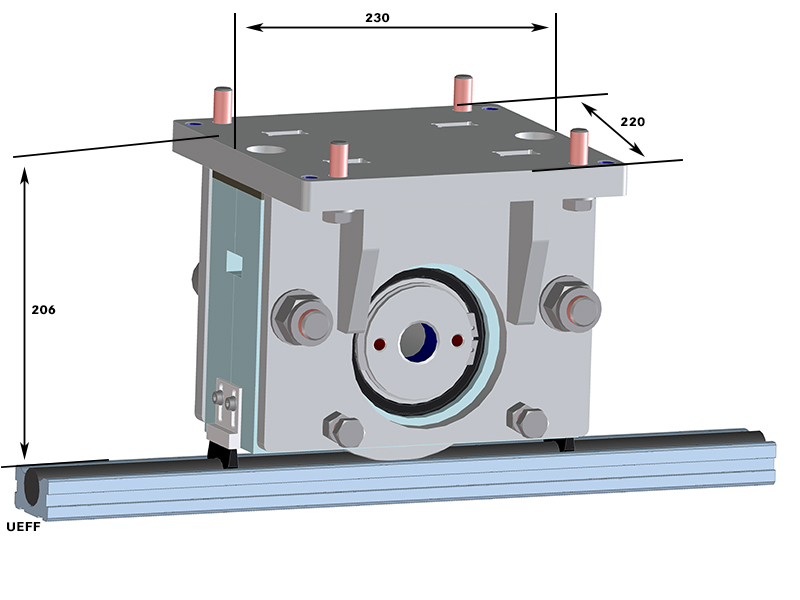

• Single drive block with mounting frame floating bearing wr25  |  article no. 1077455
• Single drive block with mounting frame fixed bearing wr25  |  article no. 1077446

max. loads: 25 kN *

* Reduced wheel flange loads: ca. 40%

available as:

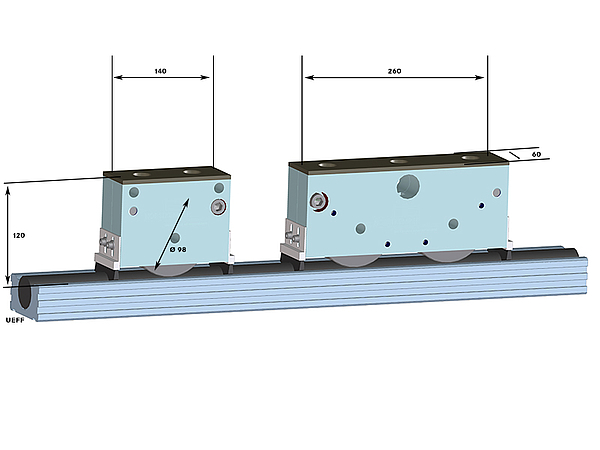

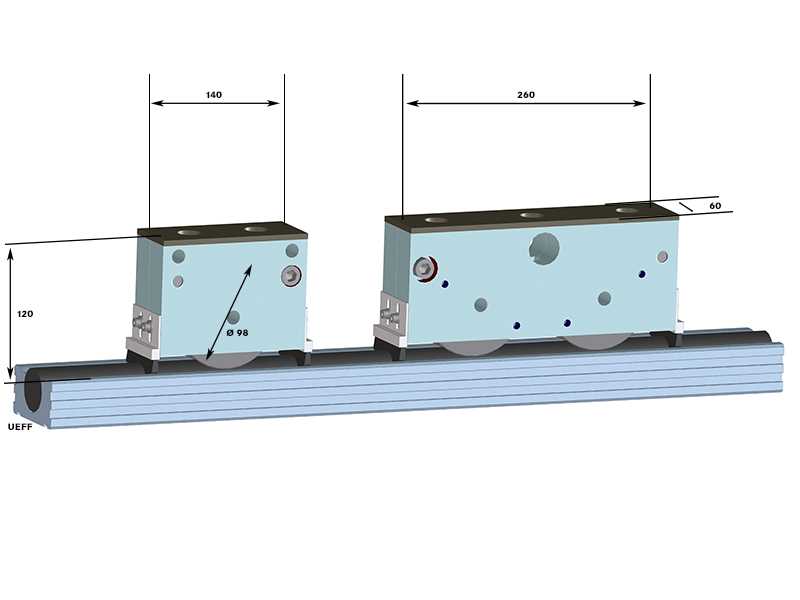

• Single wheel block wr40  |  article no. 1071365
• Double wheel block wr40  |  article no. 1071049

max. loads:

• single: 29 kN *
• double: 58 kN *

* Reduced wheel flange loads: ca. 40%

available as:

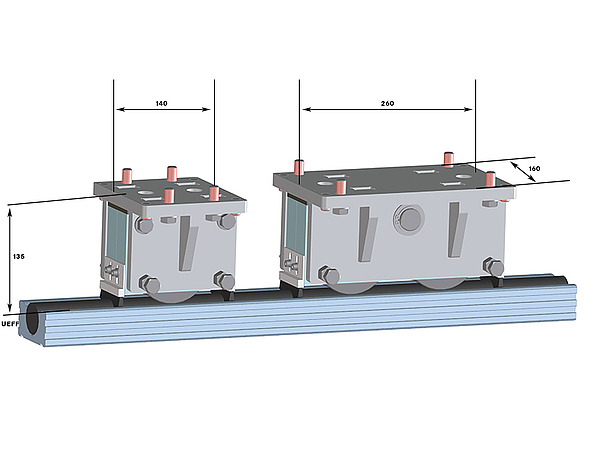

• Single wheel block with mounting frame wr40  |  article no. 1077281
• Double wheel block with mounting frame wr40  |  article no. 1075697

max. loads:

• single: 29 kN *
• double: 58 kN *

* Reduced wheel flange loads: ca. 40%

available as:

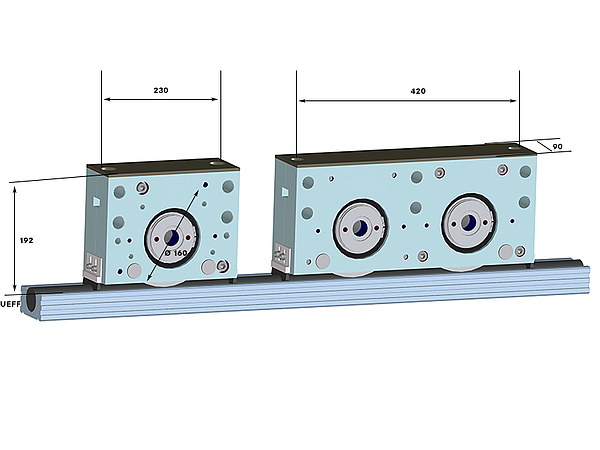

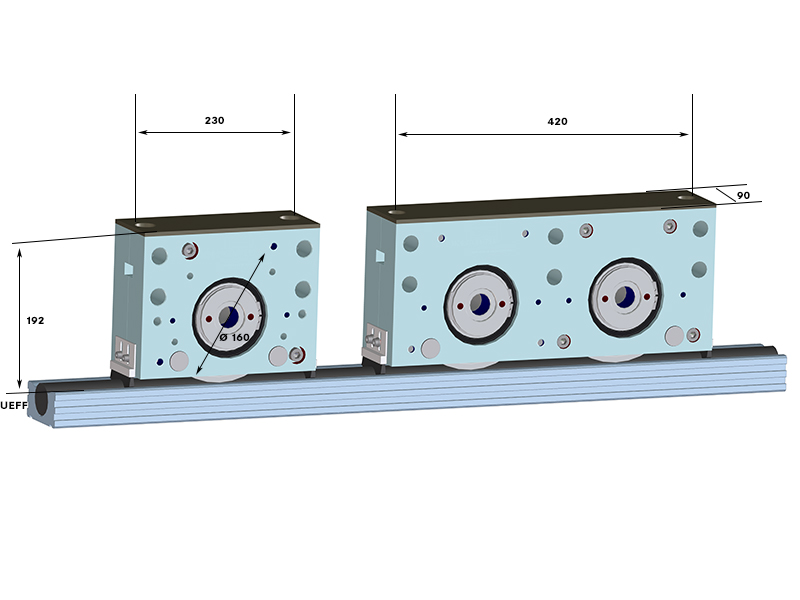

• Single drive block floating bearing wr40  |  article no. 1071682
• Single drive block fixed bearing wr40  |  article no. 1071679
• Double drive block floating bearing wr40  |  article no. 1071688
• Double drive block fixed bearing wr40  |  article no. 1071686

max. loads:

• single: 50 kN *
• double: 100 kN *

* Reduced wheel flange loads: ca. 40%

available as:

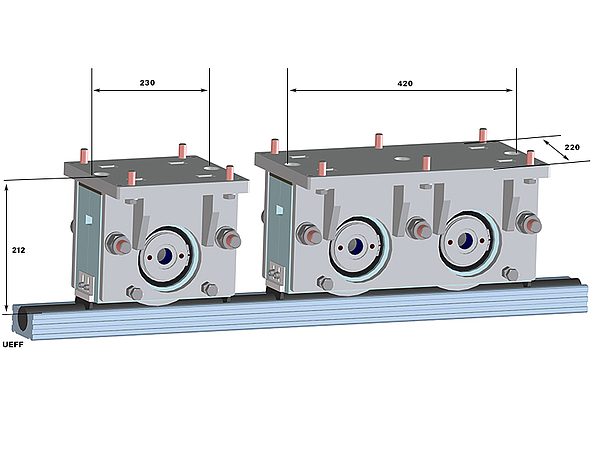

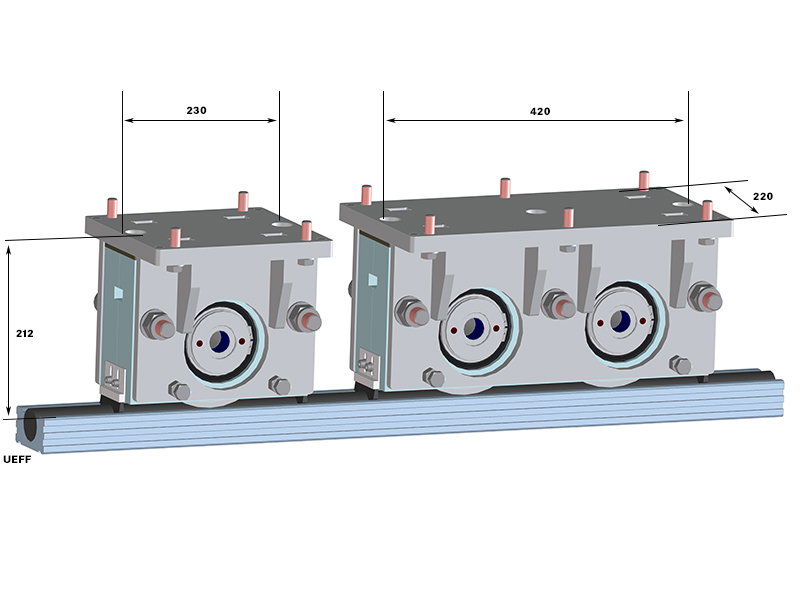

• Single drive block with mounting frame floating bearing wr40  |  article no. 1077245
• Single drive block with mounting frame fixed bearing wr40  |  article no. 1075711
• Double drive block with mounting frame floating bearing wr40  |  article no. 1077283
• Double drive block with mounting frame fixed bearing wr40  |  article no. 1077249

max. loads:

• single: 50 kN *
• double: 100 kN *

* Reduced wheel flange loads: ca. 40%

available for example in the following implementations:

• trolley wr25, max. load 1 t, track gauge 750 mm  | article no. 1118700
• trolley wr25, max. load 1 t, track gauge 1000 mm  | article no. 1118701
• trolley wr25, max. load 1 t, track gauge 1250 mm  | article no. 1118702
• trolley wr25, max. load 1 t, track gauge 1500 mm  | article no. 1118703
• trolley wr25, max. load 5 t, track gauge 750 mm  | article no. 1118704
• trolley wr25, max. load 5 t, track gauge 1000 mm  | article no. 1118705
• trolley wr25, max. load 5 t, track gauge 1250 mm  | article no. 1118706
• trolley wr25, max. load 5 t, track gauge 1500 mm  | article no. 1118707
• trolley wr25, max. load 5 t, track gauge 1750 mm  | article no. 1118708
• trolley wr25, max. load 5 t, track gauge 2000 mm  | article no. 1118709
• trolley wr40, max. load 10 t, track gauge 750 mm  | article no. 1118710
• trolley wr40, max. load 10 t, track gauge 1000 mm  | article no. 1118711
• trolley wr40, max. load 10 t, track gauge 1250 mm  | article no. 1118712
• trolley wr40, max. load 10 t, track gauge 1500 mm  | article no. 1118713
• trolley wr40, max. load 10 t, track gauge 1750 mm  | article no. 1118714
• trolley wr40, max. load 10 t, track gauge 2000 mm  | article no. 1118715
