Components

wr25 rail

Designation: | article no.:
waverail 25 – wr25 | 1101885
Support Profile wr25 | 1101884
Retaining Profile wr25 | 1101881
Clamping Profile wr25 | 1101882
wr25 – Guiding Shaft | 1101883

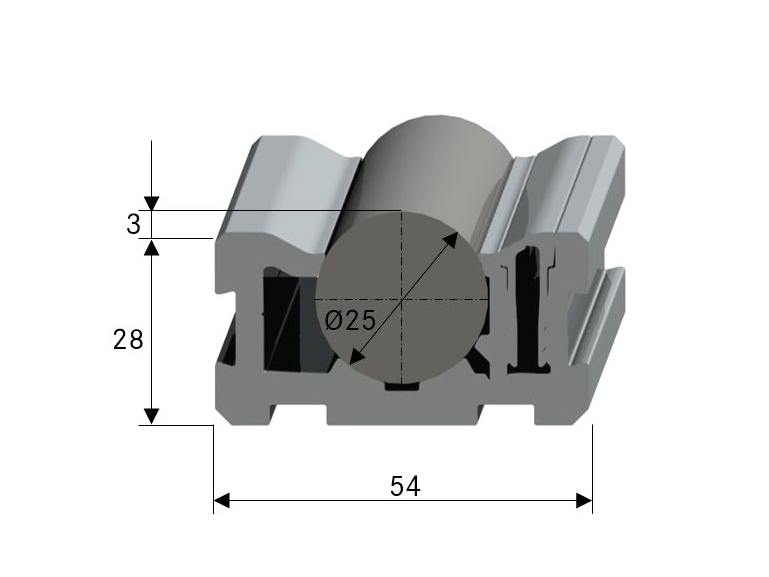

Technical cross-sectional drawing of the WR25 rail with an integrated roller. The profile geometry and key dimensions are shown with dimensions in the diagram.





wr40 rail

Designation: | article no.:
waverail 40 – wr40 | 1099996
Support Profile wr40 | 1099995
Retaining Profile wr40   | 1099992
Clamping Profile wr40 | 1099993
wr40 – Guiding Shaft | 1099994

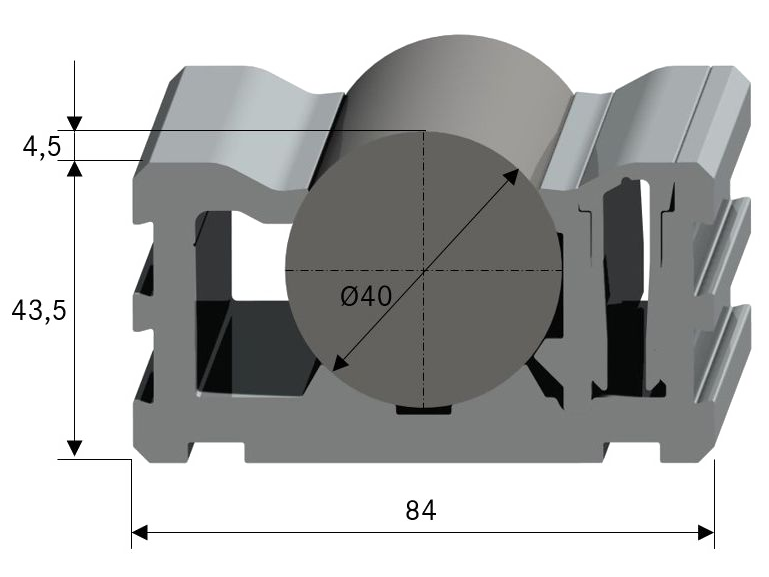

Technical cross-sectional drawing of the WR40 rail with an integrated roller. The drawing shows the profile geometry, the roller guide, and the relevant dimensions.





wr25 - Single and double wheel blocks

Designation: | article no.: | max. load:
Single wheel block wr25 |  1077399 |  16,4 kN *
Double wheel blocks wr25 |  1071512 |  32,8 kN *

* Reduced wheel flange loads: approx. 40%

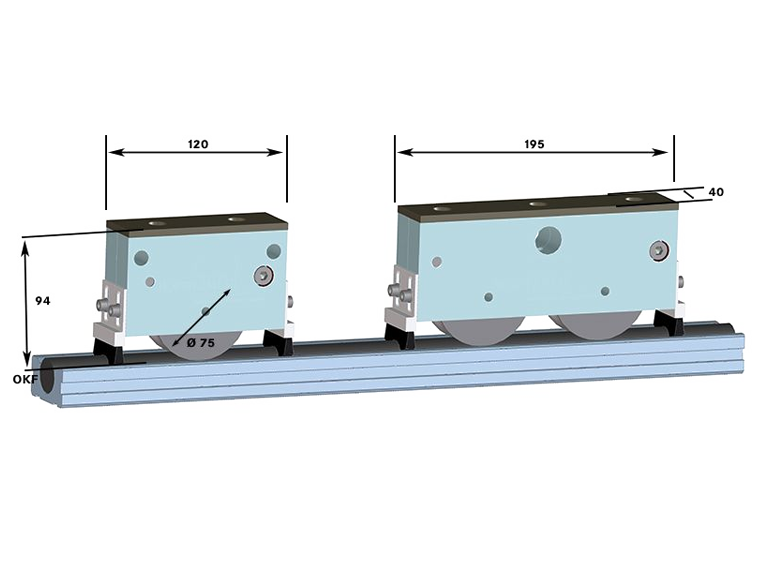

CAD rendering of WR25 wheel blocks for the waverail system. Shown are a single wheel block and a double wheel block on the rail, along with the corresponding installation and dimensional specifications.
Designation: | article no.: | max. load:
Single wheel block with wr25 mounting frame | 1077417 | 16,4 kN *
Double wheel block with wr25 mounting frame | 1077370 | 32,8 kN *

* Reduced wheel flange loads: approx. 40%

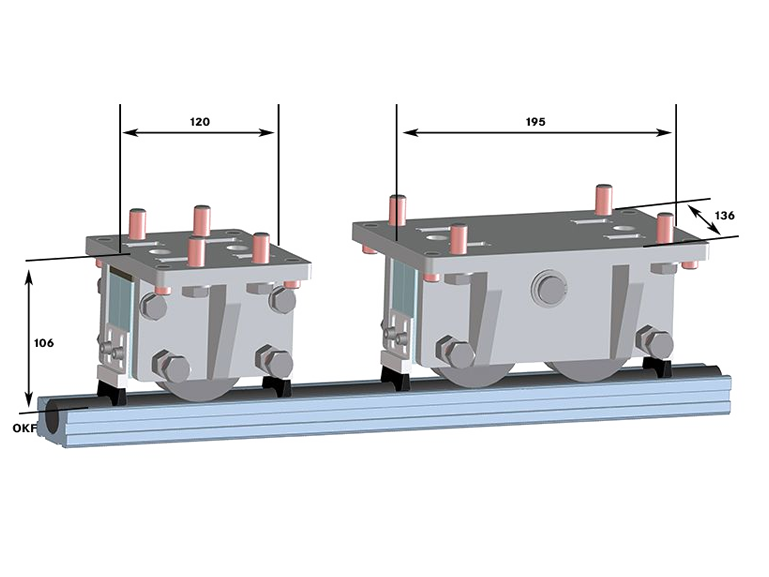

CAD rendering of wr40—single- and double-wheel blocks with mounting frames and dimension annotations





wr25 - Single drive block

Designation: | article no.: | max. load:
Single drive block floating bearing wr25 |  1077449 |  25 kN *
Single drive block fixed bearing wr25 |  1077425 | 25 kN *

* Reduced wheel flange loads: approx. 40%

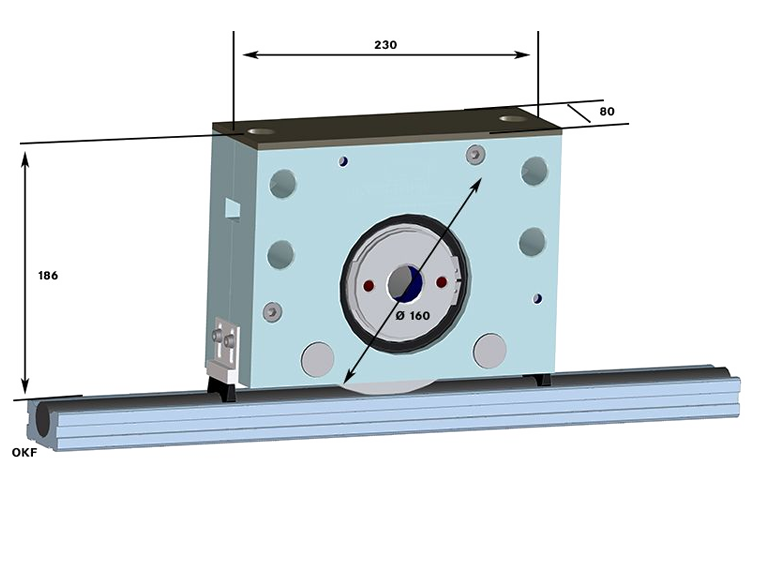

Technical drawing of a WR25 single wheel block on a waverail, showing the main dimensions.
Designation: | article no.: | max. load:
Single drive block with floating bearing
with mounting frame wr25		 | 1077455 | 25 kN *
Single drive block with fixed bearing
with mounting frame wr25		 | 1077446 | 25 kN *

* Reduced wheel flange loads: ca. 40 %

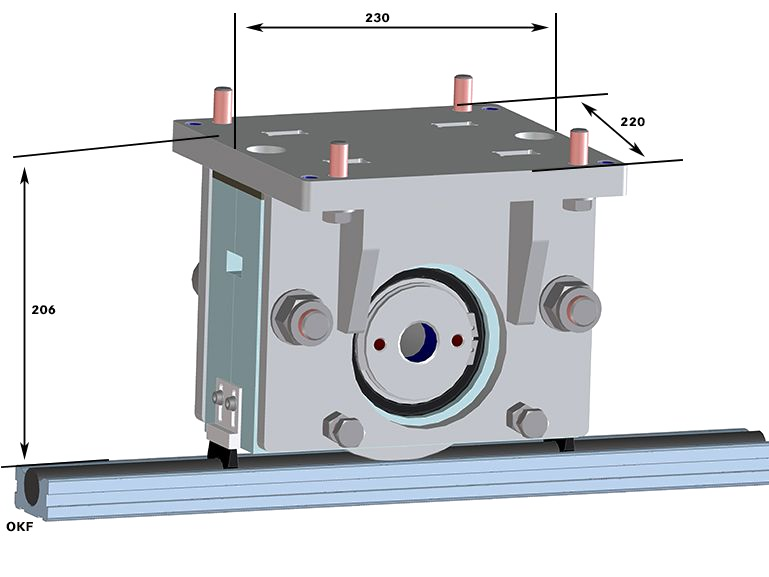

3D rendering of a wr25 - single wheel block unit with mounting frame





wr40 - Single and double wheel blocks

Designation: | article no.: | max. load:
Single wheel block wr40 | 1071365 | 29 kN *
Double wheel block wr40 | 1071049 | 58 kN *

* Reduced wheel flange loads: ca. 40 %

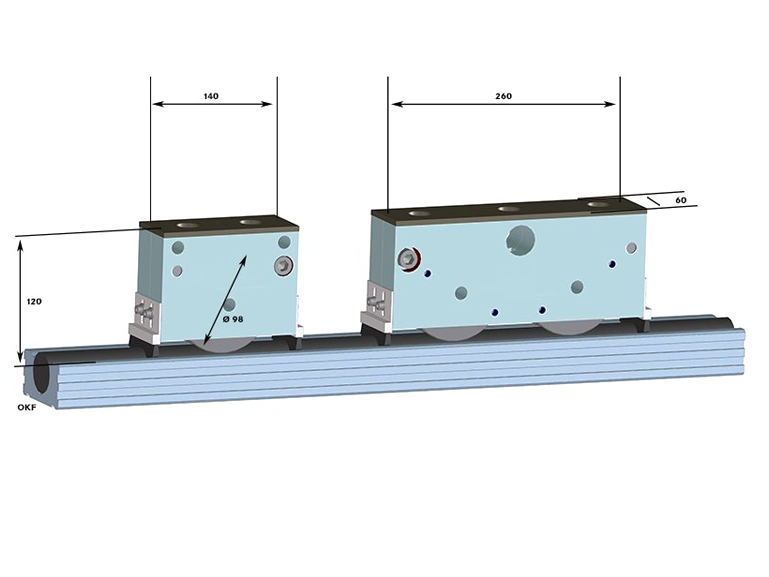

3D rendering of wr40 - Single- and double-wheel blocks with dimensions
Designation: | article no.: | max. load:
Single wheel block
with mounting frame wr40		 | 1077281 | 29 kN *
Double wheel block
with mounting frame wr40		 | 1075697 | 58 kN *

* Reduced wheel flange loads: ca. 40 %

3D rendering of wr40 - single- and double-wheel blocks with mounting frames and dimensions



wr40 - Single and double drive blocks

Designation: | article no.: | max. load:
Single drive block with floating bearing wr40 | 1071682 | 50 kN *
Single drive block with fixed bearing wr40 | 1071679 | 50 kN *
Double drive block with floating bearing wr40 | 1071688 | 100 kN *
Double drive block with fixed bearing wr40 | 1071686 | 100 kN *

* Reduced wheel flange loads: ca. 40 %

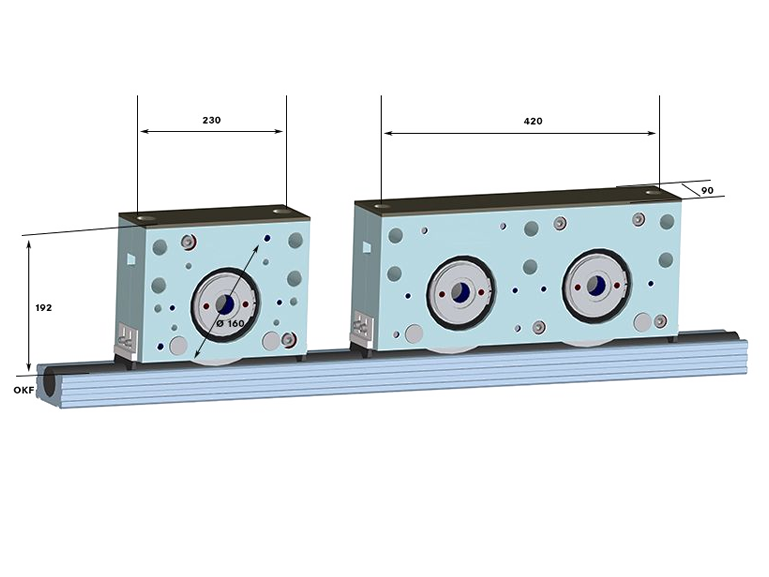

3D rendering of wr40 - Single and double wheel blocks with dimensions
Designation: | article no.: | max. load:
Single drive block with floating bearing
with mounting frame wr40		 | 1077245 | 50 kN *
Single drive block with fixed bearing
with mounting frame wr40		 | 1075711 | 50 kN *
Double drive block with floating bearing
with mounting frame wr40		 | 1077283 | 100 kN *
Double drive block with fixed bearing
with mounting frame wr40		 | 1077249 | 100 kN *

* Reduced wheel flange loads: approx. 40 %

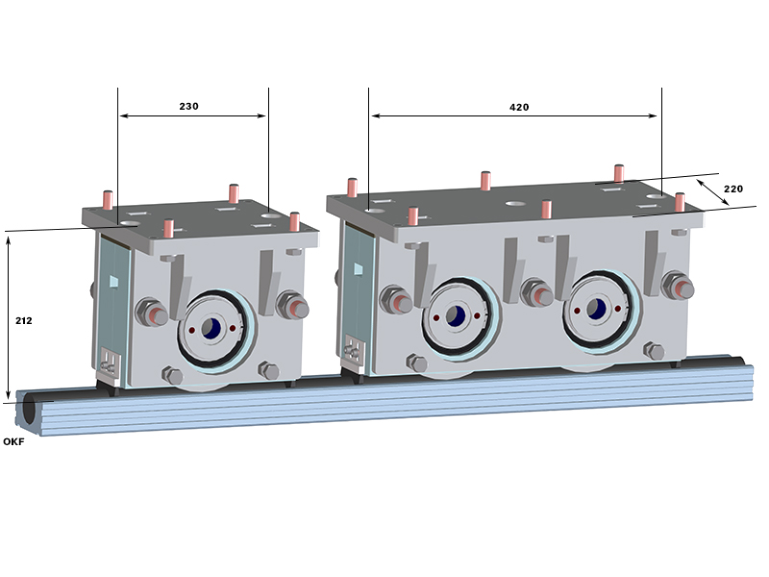

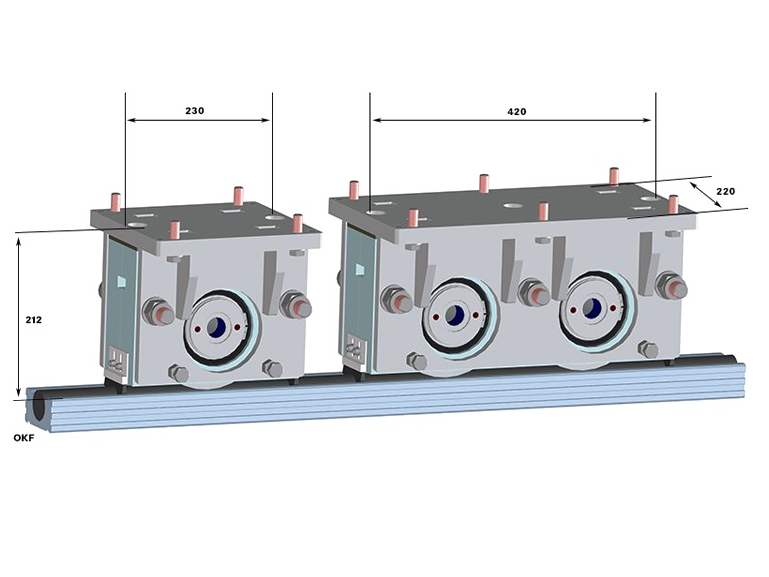

3D rendering of wr40 - Single and double wheel blocks with mounting frames and dimensions





Trolley with locking device and forklift pockets

available for example in the following designs: | max. load: | track gauge: | article no.:
trolley wr25 | 1 t | 750 mm | 1118700
trolley wr25 | 1 t | 1000 mm | 1118701
trolley wr25 | 1 t | 1250 mm | 1118702
trolley wr25 | 1 t | 1500 mm | 1118703
trolley wr25 | 5 t | 750 mm | 1118704
trolley wr25 | 5 t | 1000 mm | 1118705
trolley wr25 | 5 t | 1250 mm | 1118706
trolley wr25 | 5 t | 1500 mm | 1118707
trolley wr25 | 5 t | 1750 mm | 1118708
trolley wr25 | 5 t | 2000 mm | 1118709
trolley wr40 | 5 t | 750 mm | 1118704
trolley wr40 | 5 t | 1000 mm | 1118705
trolley wr40 | 5 t | 1250 mm | 1118706
trolley wr40 | 5 t | 1500 mm | 1118707
trolley wr40 | 5 t | 1750 mm | 1118708
trolley wr40 | 5 t | 2000 mm | 1118709

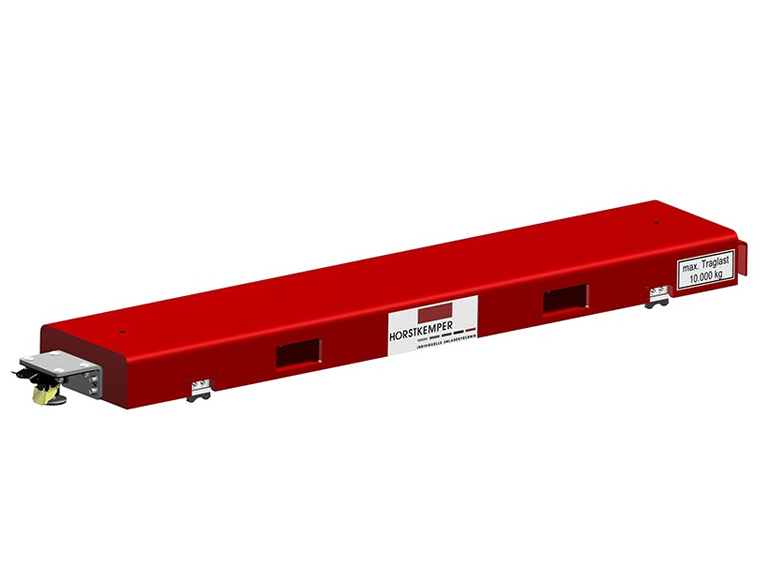

Red cart with brakes and forklift pockets
