Stack Turner

In many industries that HORSTKEMPER automates, it is necessary to turn workpieces during the manufacturing process.

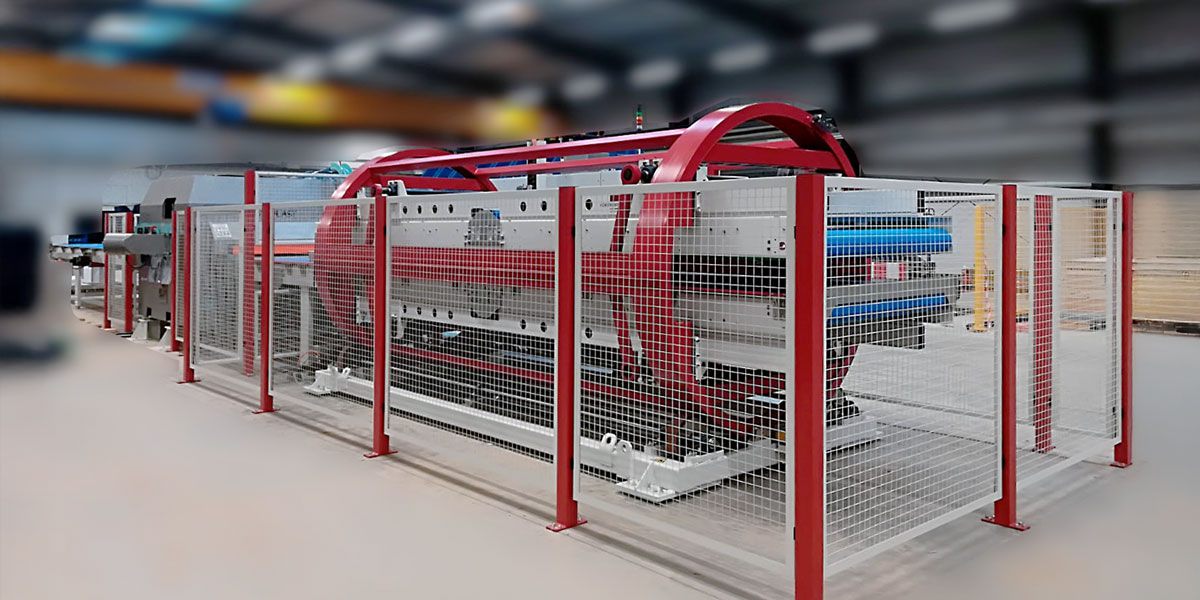

An angled view of a drum turner with a red rotating frame, a safety fence, and panels inserted in the transfer area.

These can be individual components or entire stacks. In general, our product portfolio always offers the right turner for a wide variety of orientation needs.

Stack Turning Unit for Blanks

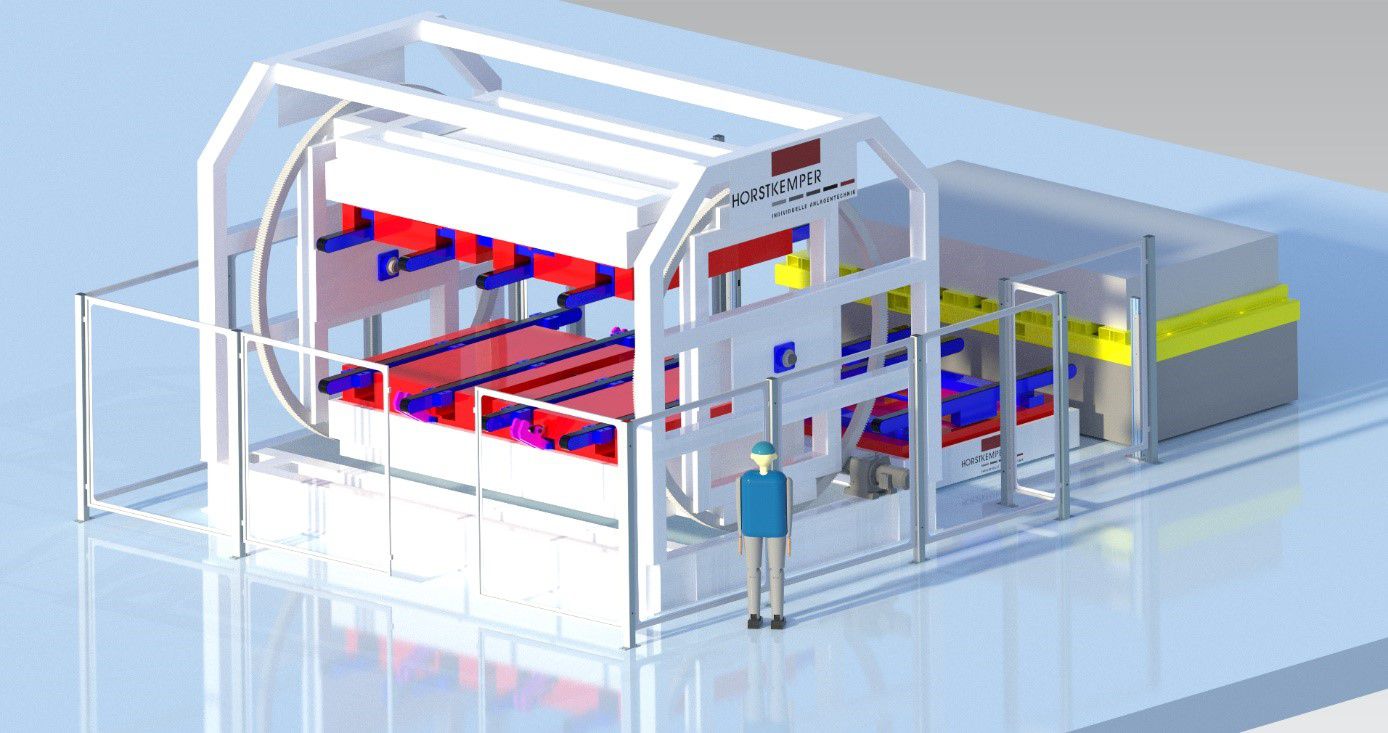

3D-Modell eines Platinenstapelwenders mit einem stehenden Menschen zur Größendarstellung

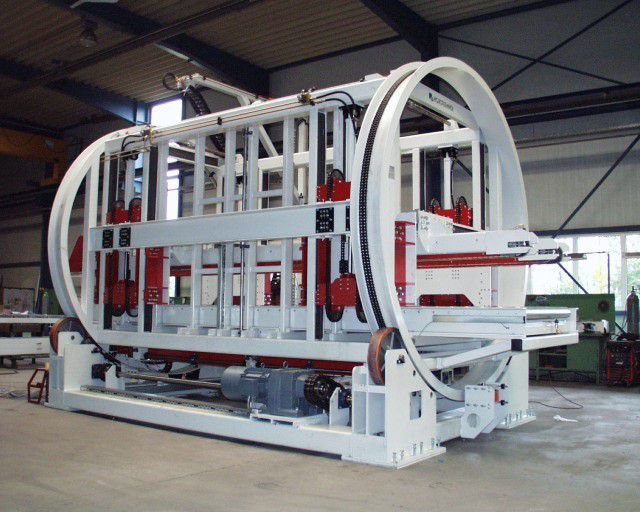

Platinenstapelwender mit zwei großen runden Rahmen und mehreren vertikalen Stäben in einer Halle

Before stacks of blanks are fed into the destacker, they often need to be positioned and turned. Our blank stack turners serve as high-performance turning devices for loads up to 20 metric tons and stack sizes up to 4,500 × 2,200 mm. The stacks are automatically fed in via our standard conveyor systems and outfed after turning. Clamping is typically performed hydraulically. All stack turners can be loaded with or without a pallet; a special holding system securely fastens the top pallet to the clamping frame during the turning process.

Drum Turner

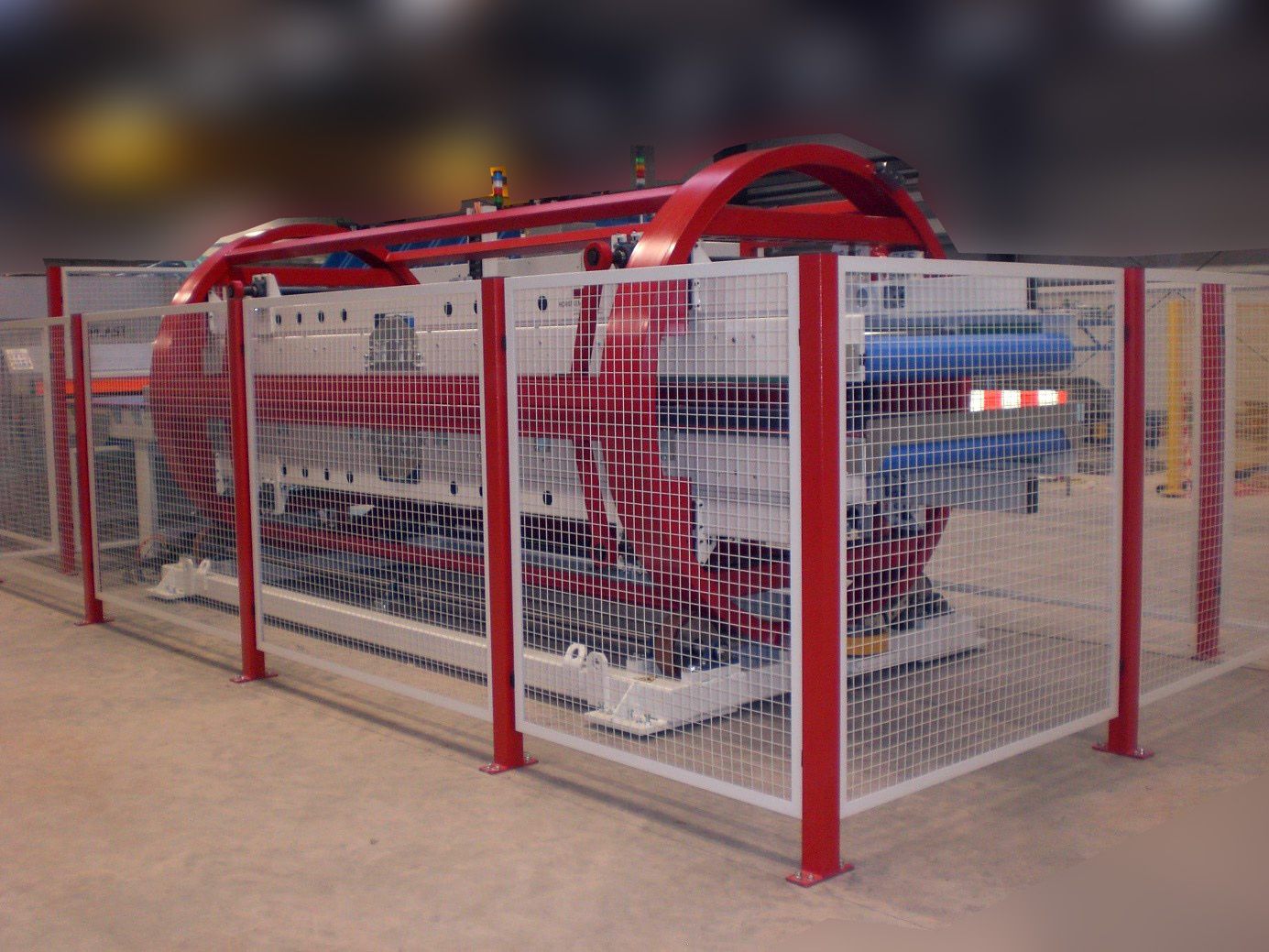

Rote Trommelwender-Maschine mit Schutzgitter in einer Industriehalle

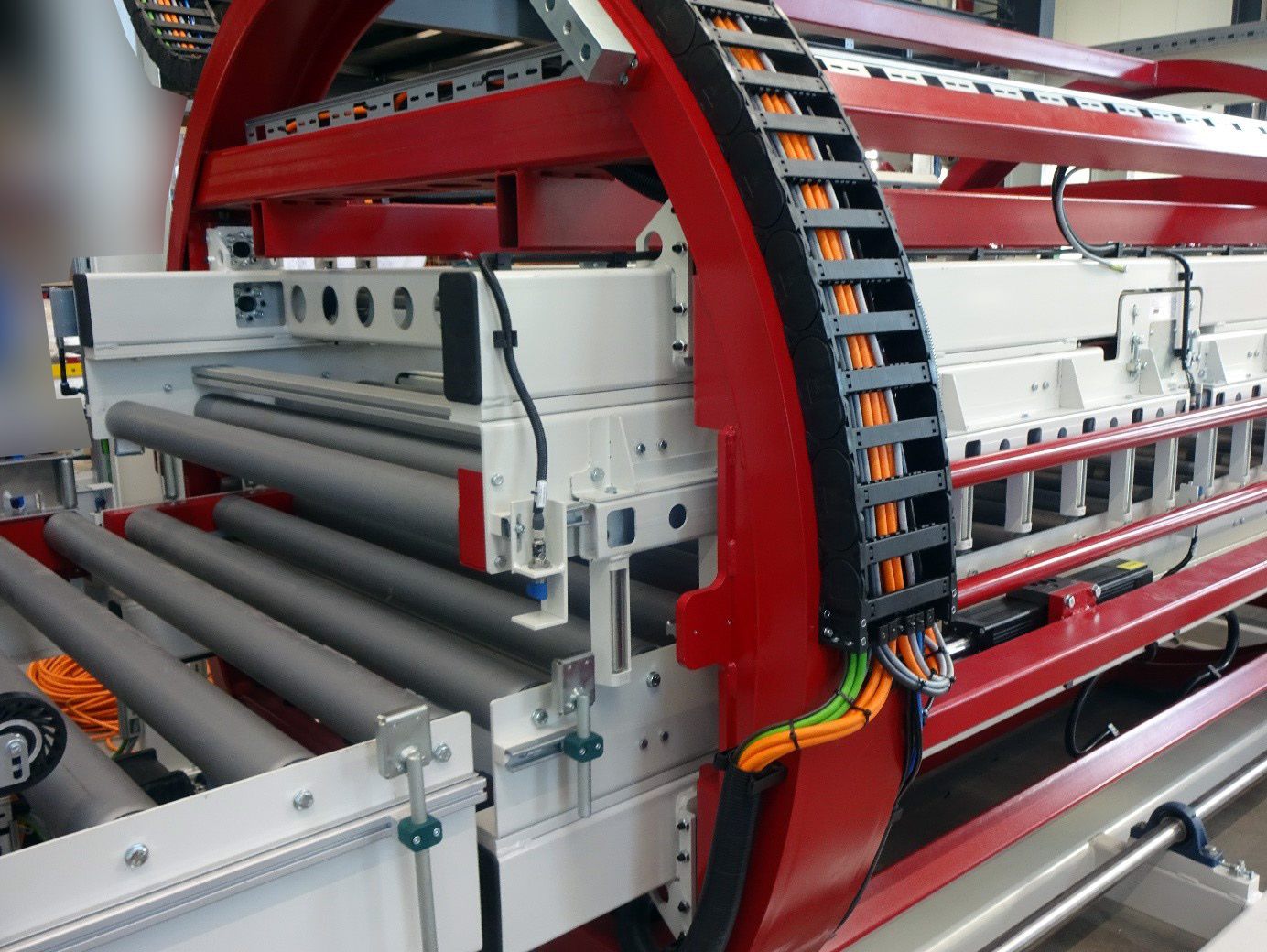

Industrielle Trommelwender mit mehreren grauen Walzen und rotem Rahmen in Produktionsumgebung

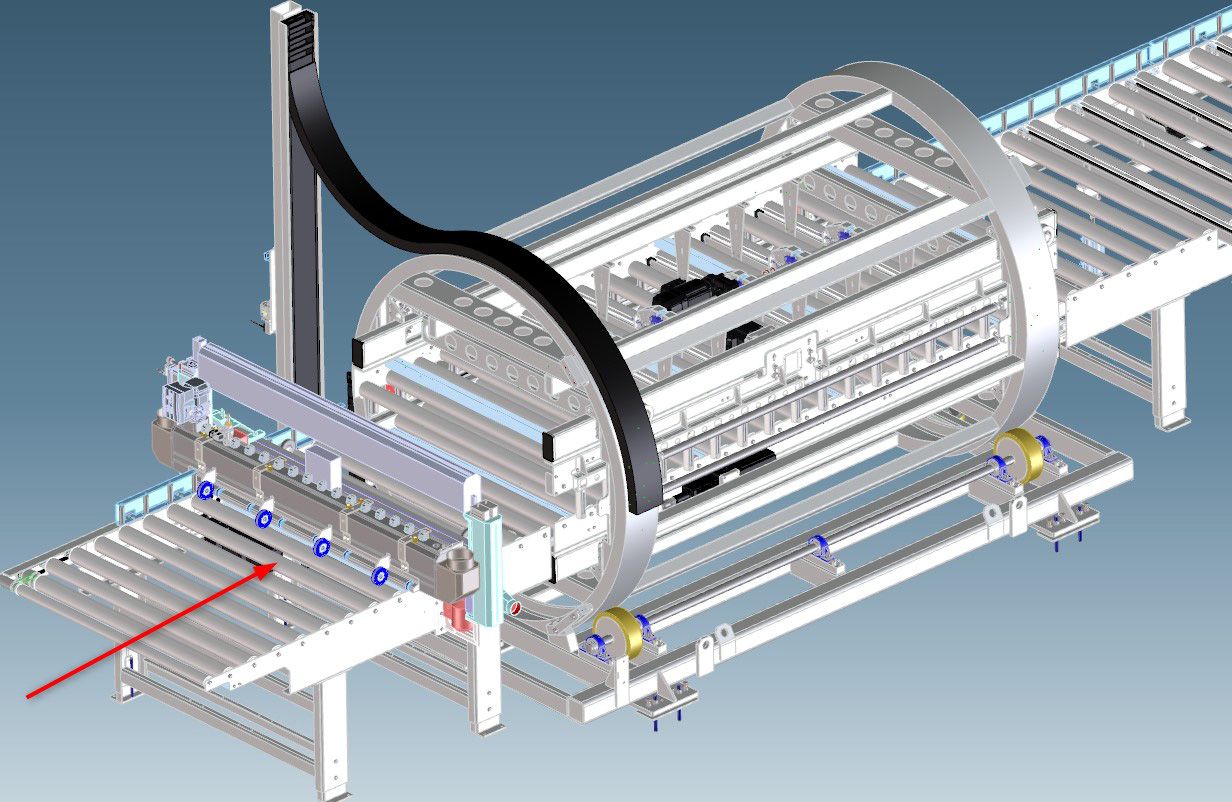

3D-Rendering eines Trommelwenders mit einem zylindrischen Gestell, das auf einem Förderbandsystem montiert ist

In many production lines, workpieces must be turned over for further processing. To address this, we have developed drum turners that integrate seamlessly into the process chain. The components are fed securely via integrated conveyor systems and a clamping mechanism and then turned by 180°. The drum turners have a modular design and are designed for various sizes and load capacities.
